Honda Goldwing Technical Specification

 on Thursday, November 4, 2010

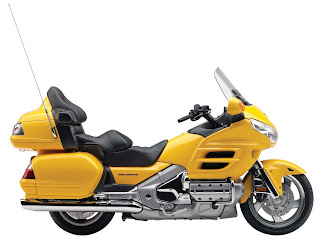

Honda Goldwing is one of Honda's luxury touring bike. It has a big body with 1832 CC four stroke engine. It has been used by touring lovers in any countries in the world. Maybe it's the  most popular Honda touring bike in the last decade. Here is the complete technical specification of Honda Goldwing – 2004.

Honda Goldwing Specifications
Manufacturer: Honda
MSR: $17999
Model ID: Goldwing
Model Year: 2004
Type: Honda Touring Motorcycle
Emissions: NA
Available Colors: Black, Red, Candy Red, Magenta Metallic, Titanium

Honda Goldwing Engine:
Engine Type: 1832cc liquid-cooled horizontally opposed six-cylinder
Bore and Stroke: 74.0mm x 71.0mm
Compression Ratio: 9.8:1
Valve Train: SOHC; two valves per cylinder
Carburetion: Programmed Fuel Injection (PGM-FI) with automatic choke
Ignition: Computer-controlled digital with three-dimensional mapping

Honda Goldwing Drive Train:
Transmission: Five-speed including overdrive, plus electric reverse
Final Drive: Shaft
Honda Goldwing Suspension:
Front Suspension: 45.0mm cartridge fork with anti-dive system, 5.5-inch travel
Rear Suspension: Pro-Arm single-side swingarm with Pro-Link single shock with computer controlled spring-preload adjustment with two memory presets; 4.1-inch travel

Honda Goldwing Brakes:
Front Brakes: Dual full-floating 296mm discs with LBS three-piston calipers
Rear Brake: Single ventilated 316mm disc with LBS three-piston caliper
Front Tire: 130/70R-18
Rear Tire: 180/60R-16
Honda Goldwing Dimensions:
Rake: 29.25 degrees
Trail: 109mm (4.3 inches)
Wheelbase: 66.6 inches
Seat Height: 29.1 inches
Dry Weight: 792 pounds
Fuel Capacity: 6.6 gallons
